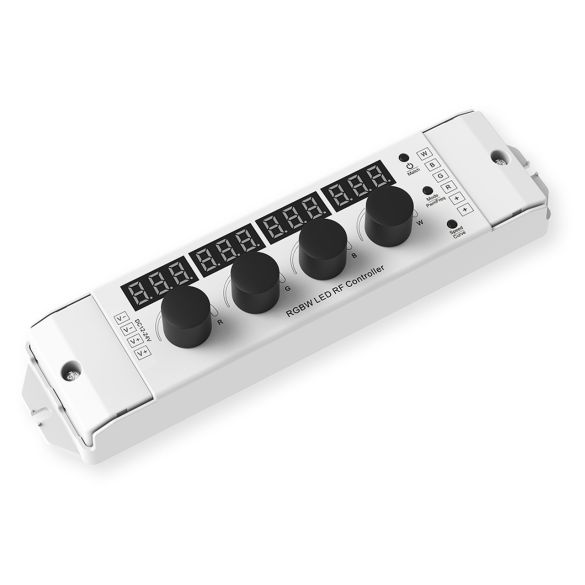

- RGBW constant voltage LED RF controller. Can also be used as a RGBW RF remote.
- 4 Dial Dimming, digital numeric display and easy key operation.
- 256 levels 0-100% dimming smoothly without any flash.
- Built-in 10 dynamic mode, include jump or gradual change style.
- PWM frequency 1000/2000/4000/8000Hz selectable.
- Logarithmic or linear dimming curve selectable.
- 5 year warranty.
Specifications
Control Distance:
30M (Barrier free)
Dimming:
Yes
Dimming Curve:
Logarithmic or Linear
Dimming Grayscale:
256 Levels
Dimming Range:
0 - 100%
Input Current:
16.5A
Input Signal:
Dial + Key + RF 2.4GHz
Input Voltage:
- 12 - 24v DC
IP Rating:
- IP20
Operating Temperature:
-30°C to +55°C
Output Current:
- 4 Channel, 4A per channel
Output Power:
4 x (48 - 96)W
Output Type:
Constant Voltage
Output Voltage:
- 4 x (12 - 24)v DC
Protection:
Reverse Polarity
PWM Frequency:
1000 / 2000 / 4000 / 8000Hz
Size:
187 x 46 x 35.5mm
UOM:
EA
