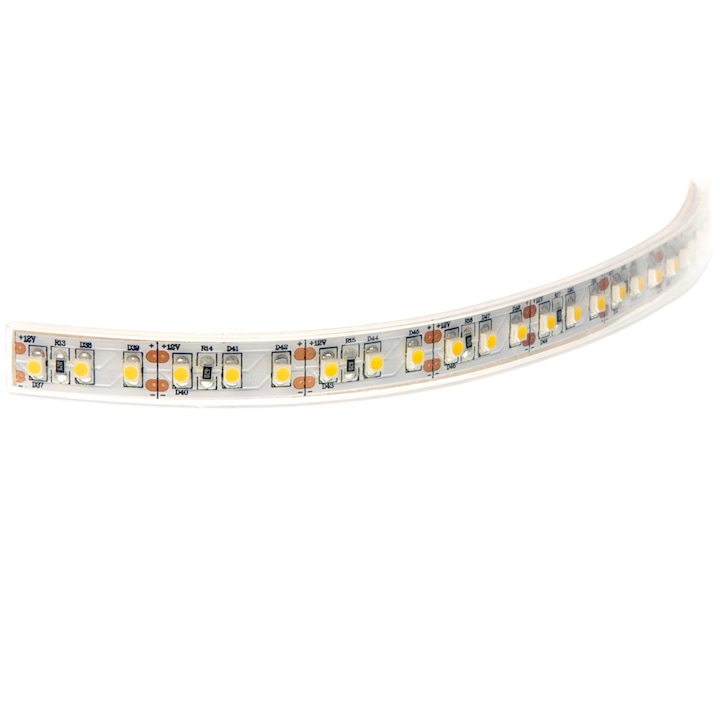

Array Linear Strip 5W 2400K

ARRAY-120-24-5-24K-NON/IP

Array LED Linear Strip is ideal for low level light requirements for shadow gap lighting and a huge range of other architectural applications, including signage, landscaping, kitchen and bathroom etc. High quality Array Strip is supplied with 3M backing double sided tape to adhere to clean, grease free non porous surfaces.

Dimmable with appropriate control products. Please see our range of wall units, 1-10, Dali, DMX and mains options. Please see our range of profiles for heat sinking and installation methods.

Specifications

Characteristics

Watts (per metre):
5
Voltage:
24 VDC
LED Type:
2835
Cuttable:
50 mm
Number of LEDs (per metre):
120
Max Run (powered from one end):
10 m
Warranty Period:
5 years
Working Temperature Range:
-10°C to +45°C

Photometrics

Colour Temperature:
2400 K
Lumens (per metre):
473
Efficacy Lumens (per watt):
94.6
ERP Group:
N/A
Wave Length:
N/A
SDCM:
< 3
CRI:
> 92
Beam Angle (IP20 version):
120°
Beam Angle (IP65 version):
120°

Dimensions

Width (IP20 version):
8 mm
Height (IP20 version):
2 mm
Width (IP65 version):
10 mm
Height (IP65 version):
4 mm
PCB Weight:
3 oz
