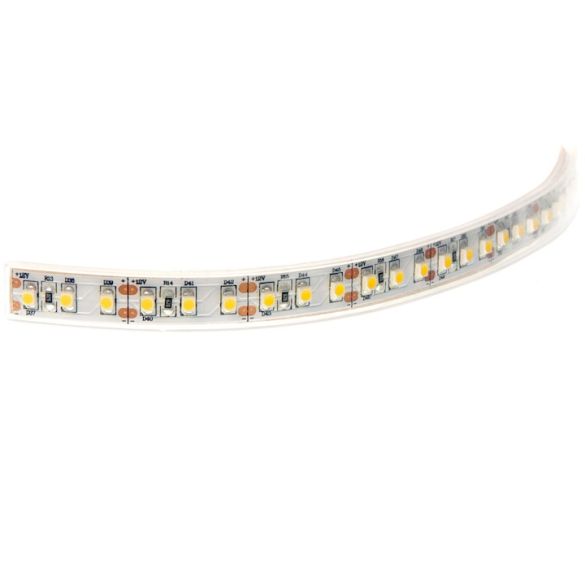

Pro Linear Strip 15W 3000K

ATMOS-120-24-15-30K-NON/IP

Atmospheric PRO LED Linear Strip 15W is ideal for domestic and commercial applications.

High quality Atmospheric PRO Strip is supplied with 3M backing double sided tape to adhere to clean, grease free non porous surfaces. Dimmable with appropriate control products. Please see our range of wall units, 1-10, Dali, DMX and mains options. Heat sinking is essential to maintain the longevity of the product, please select from our comprehensive range or call our sales team for advice.

Specifications

Characteristics

Watts (per metre):
15
Voltage:
24 VDC
LED Type:
2835
Cuttable:
50 mm
Number of LEDs (per metre):
120
Max Run (powered from one end):
5 m
Warranty Period:
5 years
Working Temperature Range:
-10°C to +45°C

Photometrics

Colour Temperature:
3000 K
Lumens (per metre):
1380
Efficacy Lumens (per watt):
92
Wave Length:
N/A
SDCM:
< 3
CRI:
> 97
R9:
> 94
Beam Angle (IP20 version):
120°
Beam Angle (IP65 version):
120°

Dimensions

Width (IP20 version):
10 mm
Height (IP20 version):
2 mm
Width (IP65 version):
12 mm
Height (IP65 version):
4 mm
PCB Weight:
3 oz
