Pro Linear Strip 20W RGB30K

ATMOS-84-24-20-RGB30-NON/IP

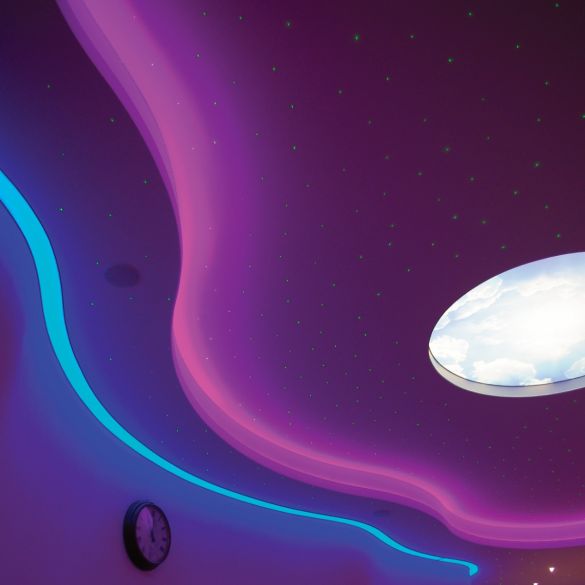

Atmospheric RGBW Pro Strip features advanced fourth chip LED technology – RGB and white chips integrated in a single unit. Fantastic whites and vivid colours can now be produced from the same Pro Strip, allowing for dynamic colour changing and mood setting. It also adds another dimension of pastel shades and the ability to keep lighting in a subdued setting during the day and then a vibrant mood setting in the evening, or for special occasions. Combining RGB+W chips in one unit offers improved colour rendering and reduced colour separation and 'tinging' often associated with separate chip placement. High quality Pro Strip is supplied with 3M backing double sided tape to adhere to clean, grease free non porous surfaces.

Specifications

Characteristics

Watts (per metre):
20
Voltage:
24 VDC
LED Type:
Quad Chip
Cuttable:
72 mm
Number of LEDs (per metre):
84
Max Run (powered from one end):
5 m
Warranty Period:
5 years
Working Temperature Range:
-10°C to +45°C

Photometrics

Colour Temperature:
RGB + 3000 K
Lumens (per metre) (White element):
TBC
Efficacy Lumens (per watt):
N/A
Wave Length:
N/A
SDCM:
< 5
CRI (White element):
> 80
R9 (White element):
80
Beam Angle (IP20 version):
120°
Beam Angle (IP65 version):
120°

Dimensions

Width (IP20 version):
12 mm
Height (IP20 version):
2 mm
Width (IP65 version):
14 mm
Height (IP65 version):
4 mm
PCB Weight:
3 oz
