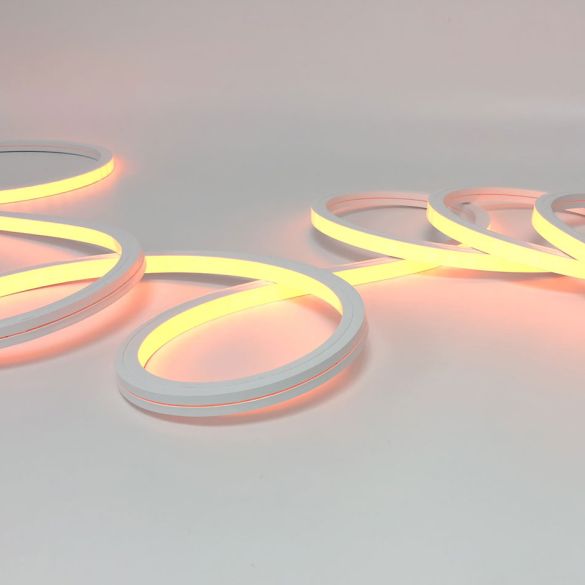

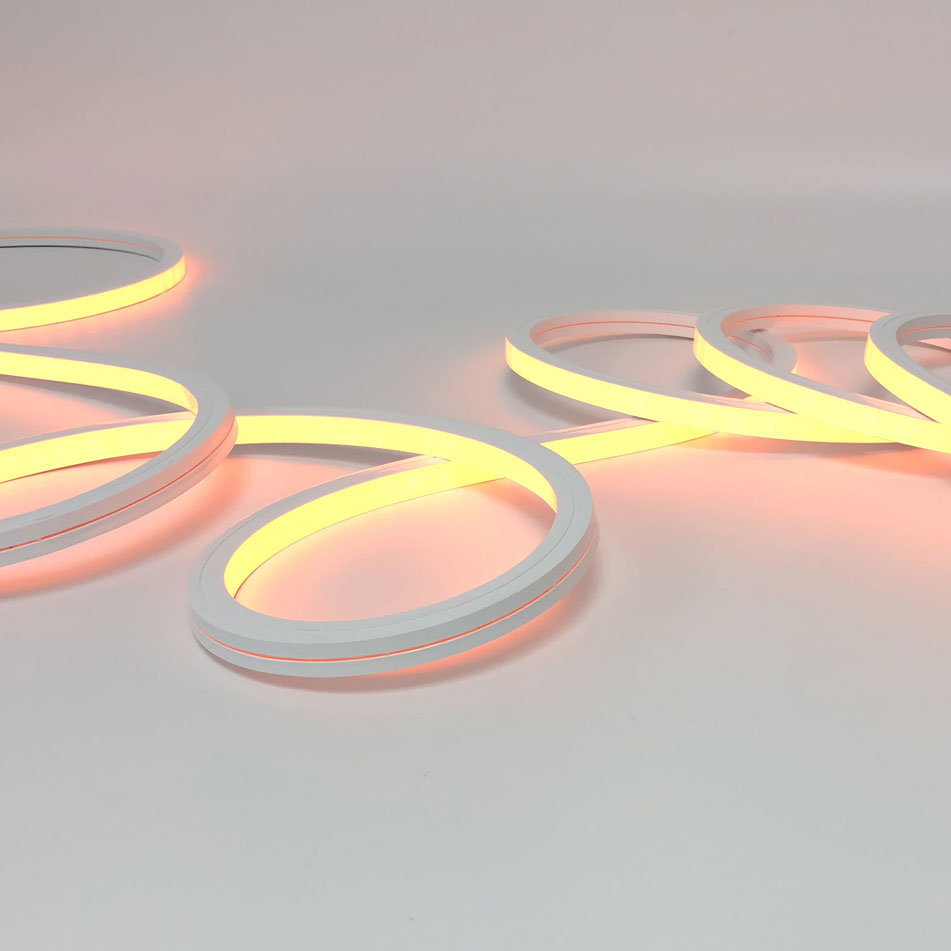

Side View 1615 LumiFlex

ATMOS-SV-1615-*-24-*
  • Silicone material
  • Efficient heat dissipation
  • Smooth plane lighting surface
  • Visible cut mark: Cuttable 50mm (Single Colour), 62.5mm (Dual White, Dim to Warm and RGB)
  • Max run @ single feed: 5M (Dual White, Dim to Warm and RGB), 15M (Single Colour)
  • UV, salt, flame and solvent resistant
  • Accessories: Silicone connector, silicone cable, silicone end cap

Specifications

Bend:
Vertical (Diameter ≥ 120mm)
Brightness:
420 - 800lm
CRI:
  • Ra >90
Cuttable:
  • 50mm
  • 62.5mm
Height:
  • 16mm
IP Rating:
  • IP67
Maximum Linear Run:
  • 15M
  • 5M
Power:
  • 12W
  • 14W
  • 16W
  • 2ch*7.5W
Size:
16mm x 15mm
Voltage:
  • 24v DC
Width:
  • 15mm
Working Temperature:
-20°C to +45°C
Colour:
  • 2400K
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • Dim to Warm
  • Dual White
  • RGB
UOM:
M
