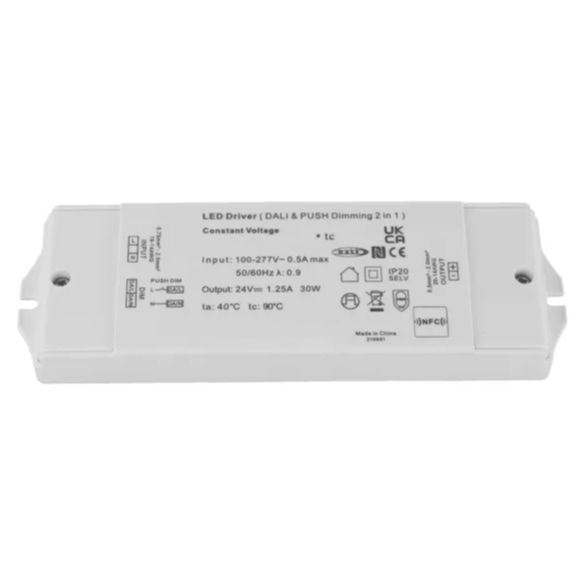

- Constant voltage / PWM Output (NFC regulation)
- DALI & Push dimming function (0-100%)
- AC input: 100-277VAC
- Built-in active PFC function
- Efficiency up to 83%
- Protections: Short circuit / Over load / Over temperature
- Cooling by free air convection
- IP20 design for indoor installation
- Suitable for intelligent LED lighting
Specifications
Output Specifications
Output Voltage:
24V (24-26V adjust by NFC)
Voltage Tolerance:
±0.5%
Output Current:
1.25A
Rated Power:
30W
Load Regulation:
±1%
Input Specifications
Input Voltage:
100 ~ 277VAC
Frequency Range:
47-63Hz
Inrush Current:
59A (Twidth=210μs 230VAC)
Full Load Efficiency (Typ.):
86.4%
AC Current (Max.):
0.8A
Leakage Current:
<0.50mA
Power Factor:
PF≥0.98@120VAC PF≥0.96@230VAC PF≥0.95@277VAC (Full loading)
Protection
Short Circuit:
Constant current mode, recovers automatically after fault condition is removed
Over Loading:
≤120% constant current limiting, recovers automatically after fault condition is removed
Over Temperature:
100°C ±10°C
Protection Class:
I
Environment
Working Temperature:
-40°C to +60°C
Working Humidity:
20 ~ 95% RH, non-condensing
Storage Temperature, Humidity:
-40°C to +80°C, 10 ~ 95% RH
Temperature Coefficient:
±0.03%/°C (0 ~ 50°C)
Vibration:
10-500Hz, 5G 10min./ 1 cycle, period for 60min.each along X, Y, Z axes
Safety & EMC
Safety Standards:
EN61347-1, EN61347-2-13, EN62493, IP20, UL8750 (US)
Withstand Voltage:
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation Resistance:
I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25°C/70%RH
EMC Emission:
Compliance to EN55015, EN61000-3-2, EN61000-3-3 (≥60% load)
EMC Immunity:
Compliance to EN61000-4-2,3,4,5,6,11, EN61547
Other Specifications
IP Rating:
IP20
Size:
171.5 x 54 x 20 mm
UOM:
EA
Weight:
0.25 kg
