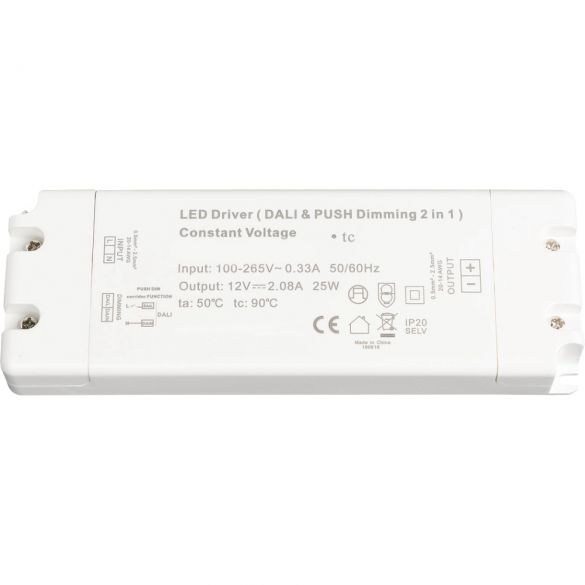

- Constant voltage/PWM output
- DALI & Push dimming function
- AC input: 100 - 265v AC
- Built-in active PFC function
- Efficiency up to 82%
- Over Temperature Protection: 100°C± 10°C
- Cooling by free air convection
- IP20 design for indoor installation
- Suitable for intelligent LED lighting
Specifications
AC Current (Max.):
0.32A / 0.3A
Frequency Range:
47 - 63Hz
Full Load Efficiency (Typ.):
77% / 82%
Input Voltage:
- 100 - 265v AC
Inrush Current:
16A (Twidth=32μs 230v AC)
IP Rating:
- IP20
Leakage Current:
< 0.50mA
Load Regulation:
±2%
Output Current:
- 1.04A
- 2.08A
Output Voltage:
- 12v DC
- 24v DC
Power Factor:
PF>0.9/230v AC (Full Loading)
Rated Power:
- 25W
Size:
155 x 54 x 20mm
Voltage Tolerance:
±0.5%
Working Temperature:
-40°C to +60°C
UOM:
EA
