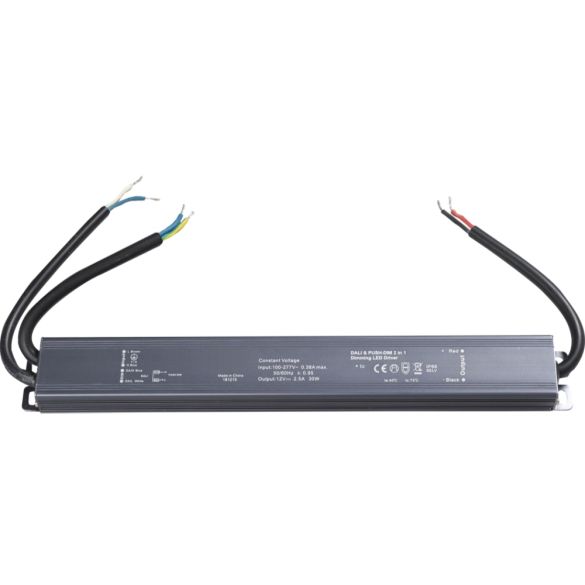

- Slimline constant voltage driver, flicker free
- AC input: 100 - 277v AC
- Built in active PFC function, >0.98
- Efficiency up to 81%
- Dimming range: 0-100%
- Short Circuit Protection: Shut down o/p voltage, re-power onto recover after fault condition is removed
- Over Loading Protection: <120%, Hiccup mode, recovers automatically after fault condition is removed
- Over Temperature Protection: 100°C ±10°C, re-power onto recover
- Dimming function: Built in DALI interface. Dimming function conforms to DALI Protocol IEC62386
Specifications
AC Current (Max.):
0.38A @100v AC
Frequency Range:
47 - 63Hz
Full Load Efficiency (Typ.):
81%
Input Voltage:
- 100 - 277v AC
Inrush Current:
33.2A (twidth=116μs) @230v AC
IP Rating:
- IP66
Output Current:
- 1.25A
- 2.5A
Output Voltage:
- 12v DC
- 24v DC
Power Factor:
PF >0.98/120v AC
Rated Power:
- 30W
Size:
260 x 32 x 23mm
Voltage Tolerance:
< 500mV
Working Temperature:
-40°C to +60°C
UOM:
EA
